Configuring the output

Add a new output config

Click the Add Output Config button in the main MobiFlight window to open the output configuration dialog.

Filter the output presets

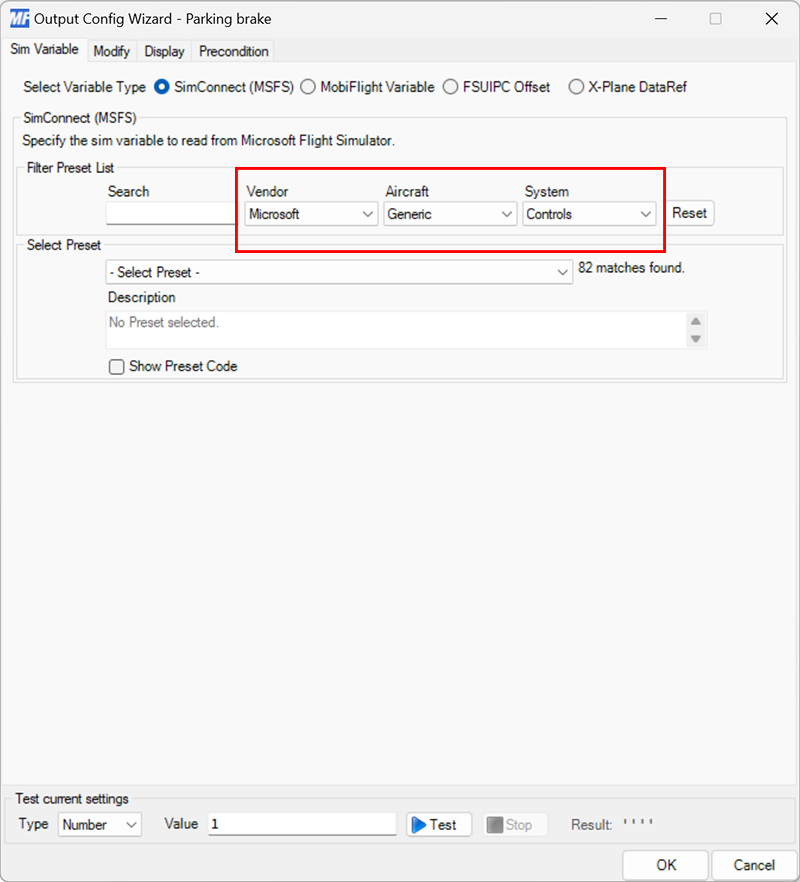

On the Sim Variable tab, use the Filter Preset List dropdowns to filter by Microsoft, Generic, and Controls.

Select the parking indicator preset

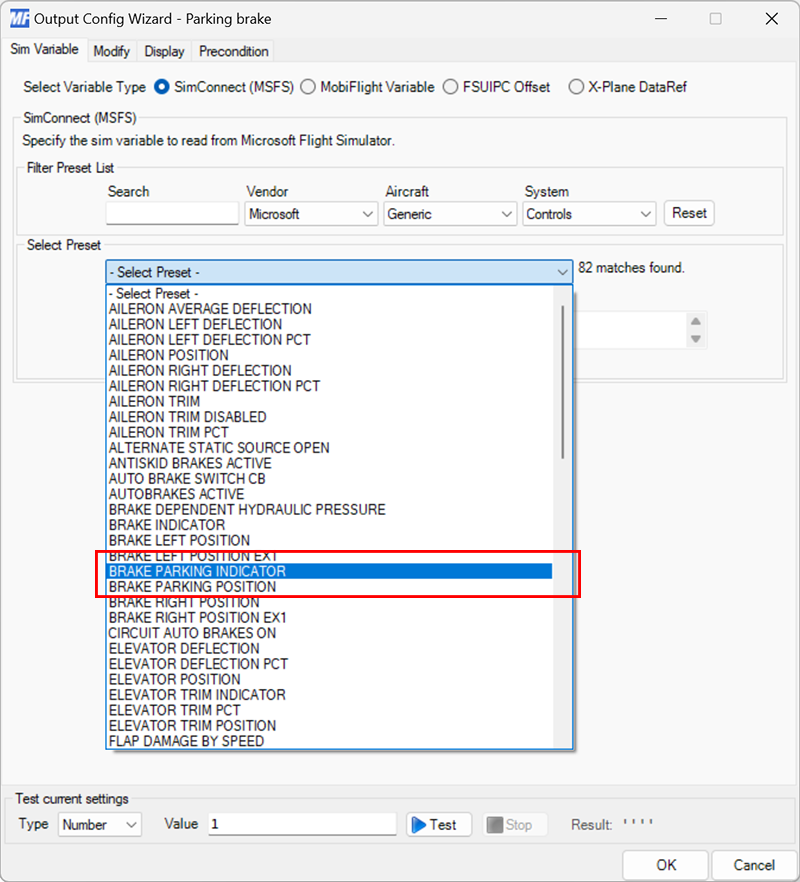

Use the Select Preset dropdown to select the PARKING BRAKE INDICATOR preset.

Select the board and device type for the output

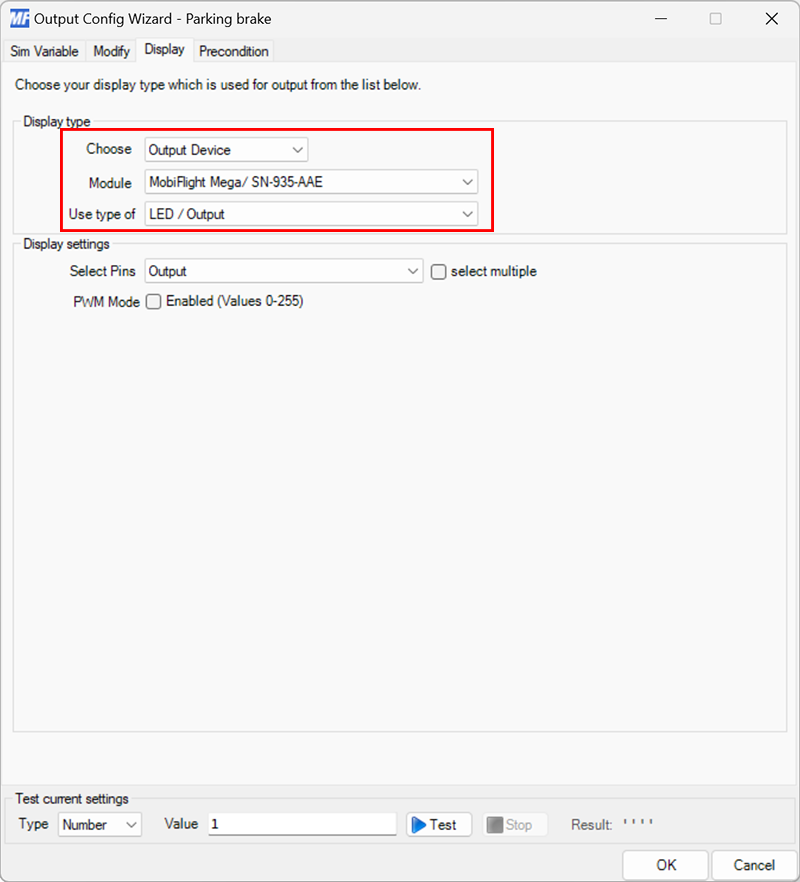

On the Display tab, use the Module and Use type of dropdowns to select your connected board and the LED / Output device type.

Select the LED to use for display

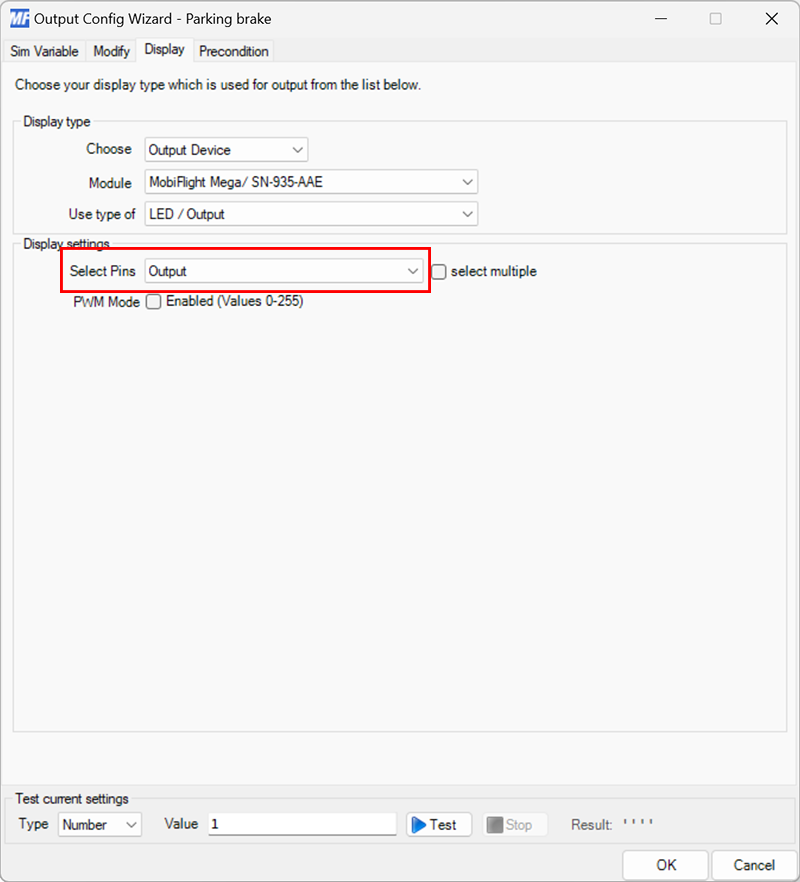

Use the Select Pins dropdown to select the LED device that should display the output value.

Close the dialog and name the config

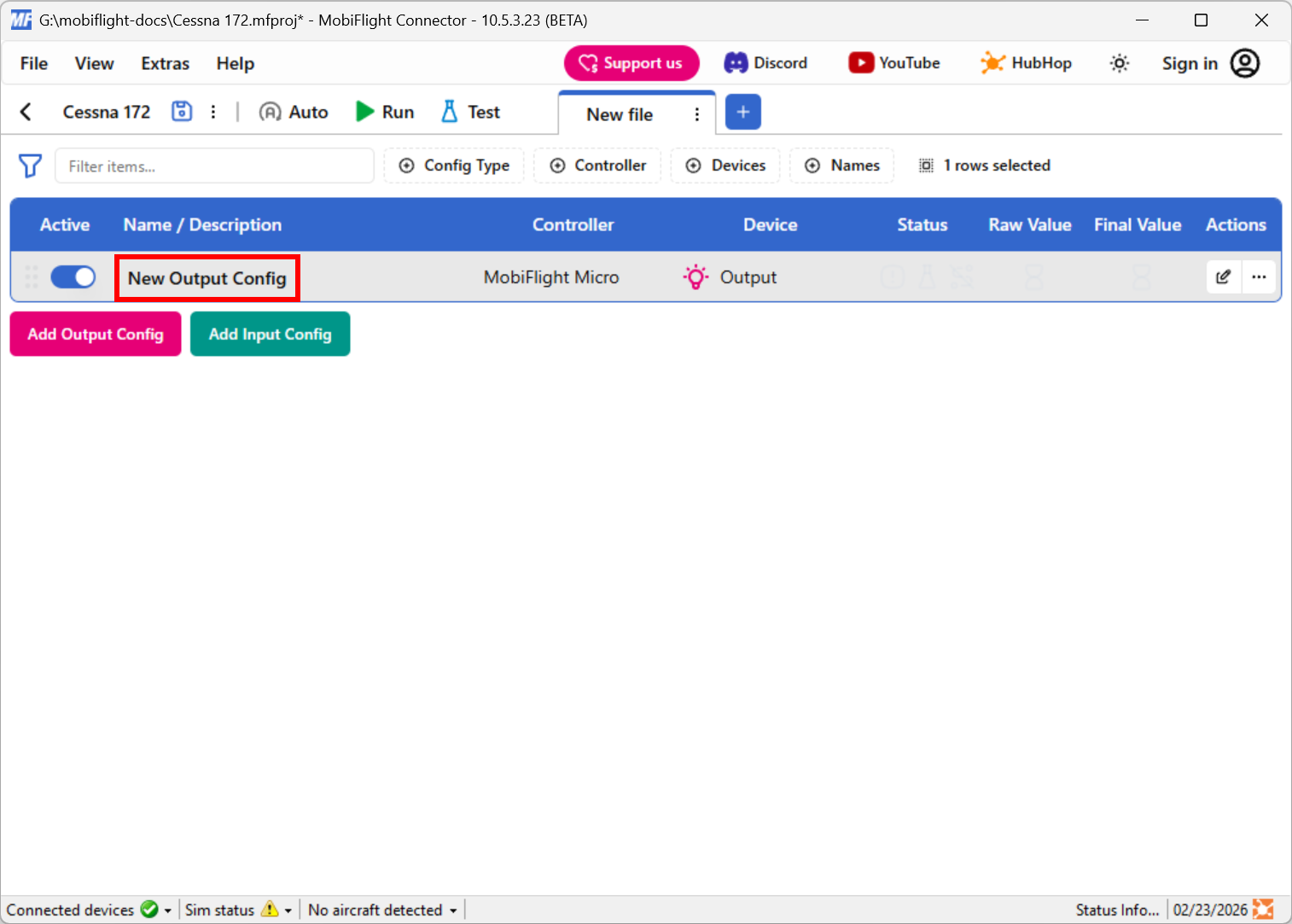

Click the OK button to close the dialog, then double-click on the New Output Config name in the main window.

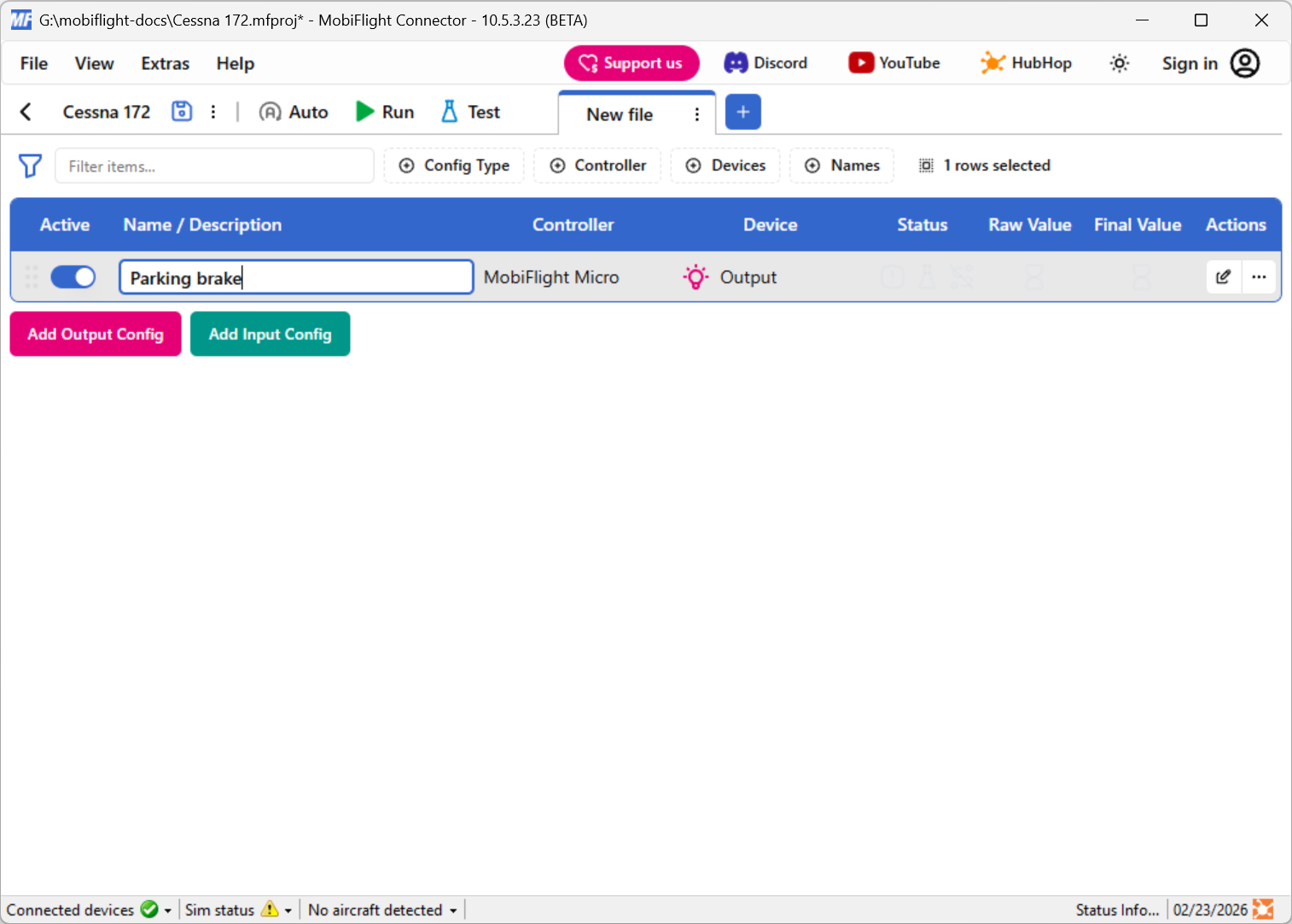

Type in a meaningful name for the new config, for example Parking brake, and press enter to apply the change.

Try out the event

Spawn an airplane in Microsoft Flight Simulator. Make sure the MobiFlight Run button is clicked in the toolbar, then try toggling the parking brake in the simulator. The attached LED should light up when the parking brake is applied.
